Linear Modules

Bosch Rexroth launches the small modules screw driven (SMS) linear modules suitable for handling cost-sensitive small parts. They are available in predefined sizes from 30 to 120 mm for travel ranges of up to 1,200 mm.

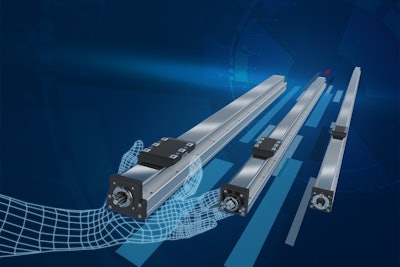

Lt23004 Rexroth Sms Linear Axes Image

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

Bosch Rexroth’s low-profile and light linear modules are ideal for simple positioning and feeding tasks and allows economical electrification with a high repeatability. The electromechanical axes have a compact, low-profile aluminum design with integrated precision guideways. A magnetically fixed steel cover strip protects the components inside.

The SMS linear modules offer a high repeatability of up to ± 0.005 mm. They can be used to position small masses in a wide range of cost-sensitive areas with low to medium dynamics, including the consumer goods and packaging industry, semiconductor and battery production, 3D printing, the automotive sector, medical technology, and typical mechanical engineering applications. Due to low system and service life costs, the SMS linear modules are also an efficient alternative to pneumatically driven axes.
