Nook_Industries

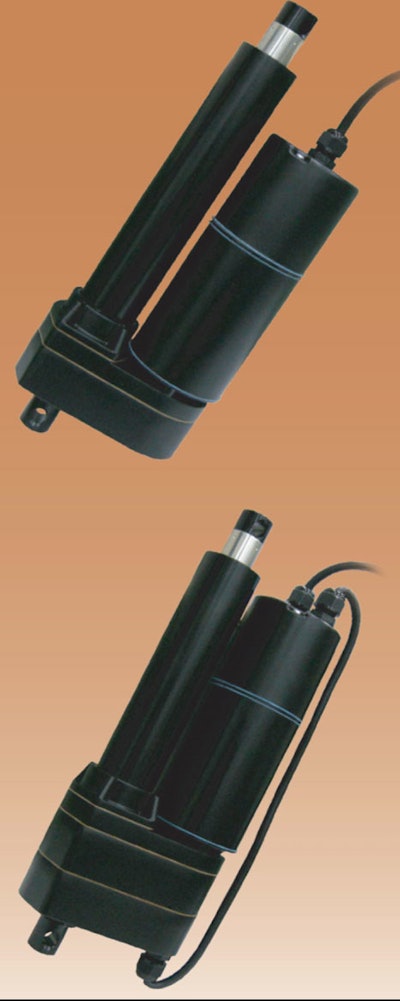

Actuators offer a standard 110/115/230 VAC single phase split
capacitive motor that delivers a 25% duty cycle. External capacitor is
supplied. Other standard features for both versions include; dynamic load capacity of 1,500 lbs.
and less, stroke lengths from 4 – 24 in., working temp. of -26°C to
+65°C, self-locking, and overload protection by clutch. Optional
potentiometer feedback and adjustable limit switches are also
available. Nook’s ND8 Ball Screw Series is available with a 12/24V DC
Motor option that delivers the same key design variables with the
addition of 65mm/sec maximum speed, stroke length of 100-600 mm, and no
back driving.
